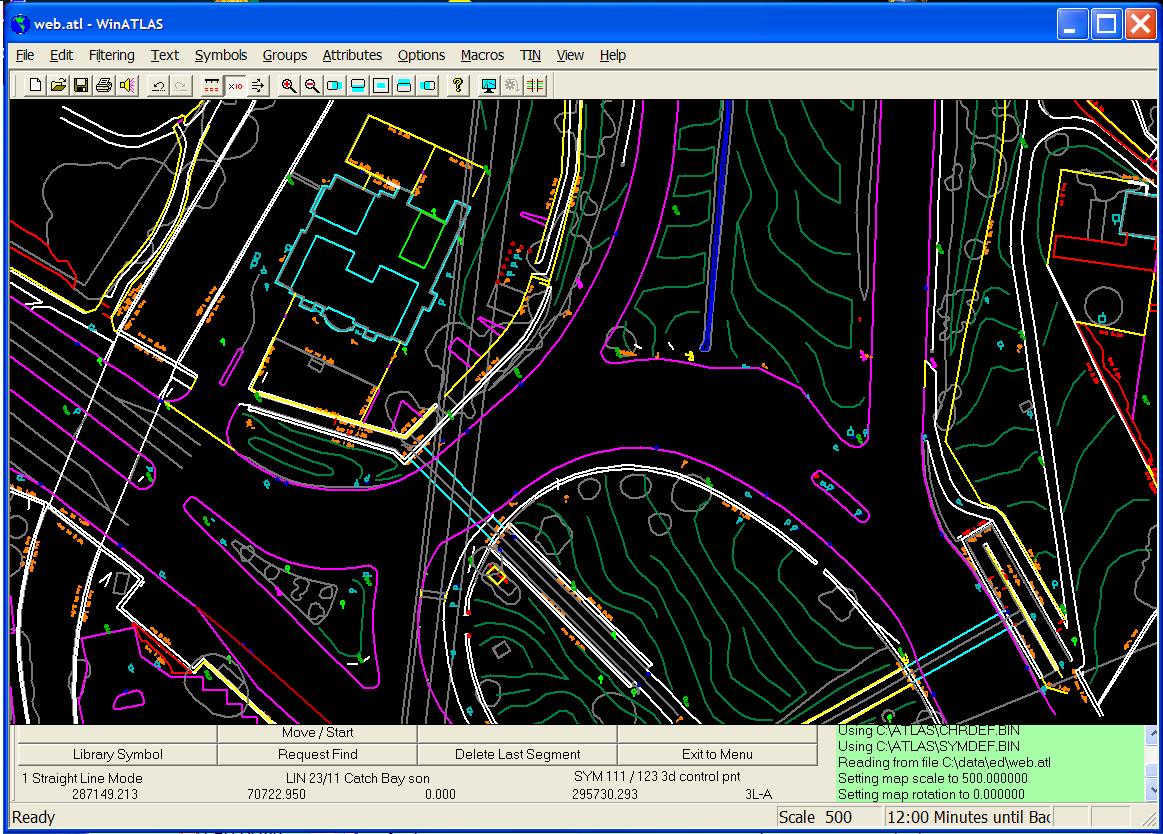

WinATLAS is our standard tool for editing of map data. This package also supports online input from numerous flatbed digitizers through standard RS232 or USB interfaces, and from analytical stereoplotters connected through the AP32 interface. We also support analog instruments through a choice of connections, and support these devices with our own absolute orientation software. This software is supported on all current MicroSoft Windows operating systems.
In addition to all of the functionality of its predecessors, WinATLAS also supports direct input of various formats such as Autocad, Intergraph, etc., either directly or through separate translators.
Lidar files can be imported and manipulated through our WinBatch program, and can then be imported into WinATLAS where contours can be generated using the optional TIN package.
Also available are all of our softcopy software, such as ATLAS/DSP, ATLAS/Ortho, RastView and RastUtil, and automatic AT.
| Digitizing Support for | Terrain Modeling (TIN) |
|---|---|
| Analytical instruments
(Analytical Orientation with AP32 or ABC) Kern DSR’s (LMT or AP32 retrofit) Zeiss P series Instruments Zeiss C series Instruments (P processor or AP32) Leica SD series Instruments Wild BC series Instruments (AP32 retrofit) |
Flexible usage and output
Contours, X-sections, Surfaces, Volumes, Perspectives Real-time terrain modeling (Instant data integrity validation) Feature code based build parameters (intelligent modeling) Superior modeling based on triangulated irregular network Unique 2D to 3D capabilities Heads-up digitizing (with interpolated Z) True 3-D Modeling Fly-Through LIDAR Support |
| Analog instruments | Data filtering by |
| Wild A7, A8, A10, AG1
Zeis E2 Galileo G6, S2C, S3d |
Line Type, Symbol and Layer
Elevation Non-Graphic Attribute Data grouping |
| XY digitizers | GIS data Preparation |
| User definable ASCII format
Projective, Affine and Helmut transformations Raster image backdrop |
Generate nodes
Generate centroids Attribute edit / review Polygon maintenance |
| Vector data Import and Export | Local customizing |
| Bi-Directional translators
AutoCAD, MicroStation ASCII XYZ, Kork, ARC Shape Import translators Cadmap, Kern CAM, Wild MP, LIDAR, Zeiss Phodat, MOSS, SysScan |
Complete native language support
French, Spanish, German, Japanese, Korean, Chinese, Hebrew and others User defined macros, symbology and line patterns All windows fonts |
